All Purpose

GS10S (GS10S)

SPECIFICATIONS:
• DRIVER — Universal Voltage (120~277V) electronic driver with 0-10V Dimming.
• HOUSING — Die cast aluminum housing with built-in heatsink fins for optimal thermal management.
• LENS — Clear ribbed optical lens with 150° beam angle.
• LIGHT ENGINE — Energy Efficient LED - Selectable Wattage / CCT. >50,000 Hours Lifespan.

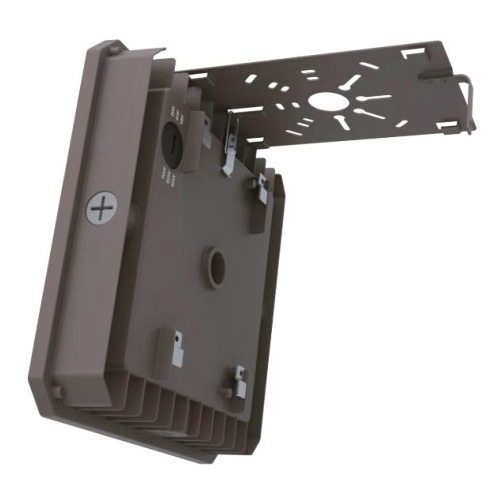

• MOUNTING — Mounting plate directly mounts to ceiling or J-BOX is standard.

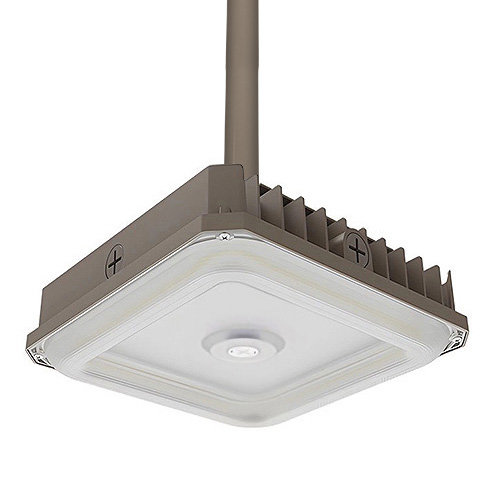

Optional Pendant Mount.
• OPERATING TEMPERATURE — -40°C~45°C (-40°F TO +113°F)
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards.
UL, FCC Certified. IP65 Rated, Suitable for Wet Locations.
• WARRANTY — 5 Year Limited Warranty.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
