New!
Surface Mount

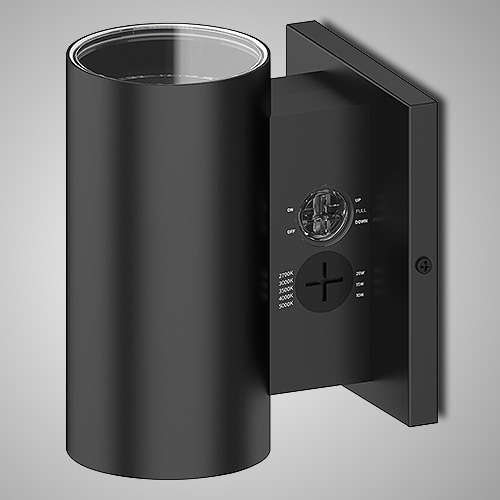

Troy 4 (TY4)

• DRIVER — Universal Voltage 120/277V Electronic Driver.
• FINISH — Durable powdercoat finish applied over pre-treated surfaces.
• HOUSING — Open heavy gauge aluminum cylinder.

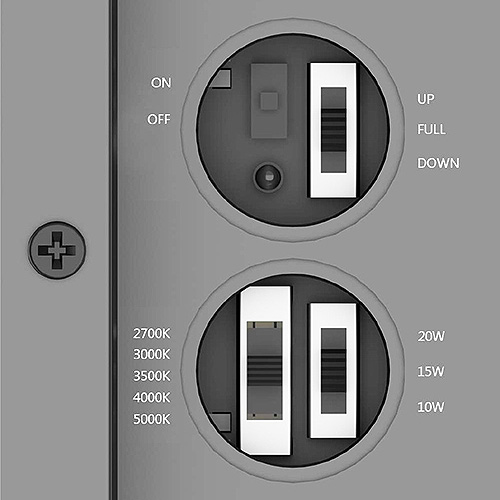

• LIGHT ENGINE — Energy efficient LED is standard. Selectable wattage/CCT can be adjusted via switches on the side of the fixture.
• LIGHT DIRECTION / BEAM ANGLE — Small Model: 25° to 65° / Medium Model: 40° to 80°. Beam Angle and Light Direction (Up/Full/Down) can be adjusted via dial switches on the side
of the fixture.
• LENS — Clear Tempered Glass.
• MOUNTING — Wall Mount featuring Arm.
• PHOTOCELL — Built-in Photocell. Can be turned On/Off via switch on the side of the fixture.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards.
• WARRANTY — 5-Year Limited Warranty.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
