Vandal

WM-FSM (WM-FSM)

• DRIVER — Universal Volt 120/277V electronic driver with 0-10V low voltage dimming (100-30%).
• EMERGENCY — Optional 8W Emergency Battery is available.
• FINISH — Weatherproof polyester powder coated finish.
• HOUSING — Die-cast aluminum, corrosion-resistant housing which conducts heat for optimal thermal management. Housing is fully-sealed which prevents moisture and external elements from contaminating the internal components.
• LENS — UV stabilized polycarbonate prismatic lens design provides optimal light distribution and uniformity.

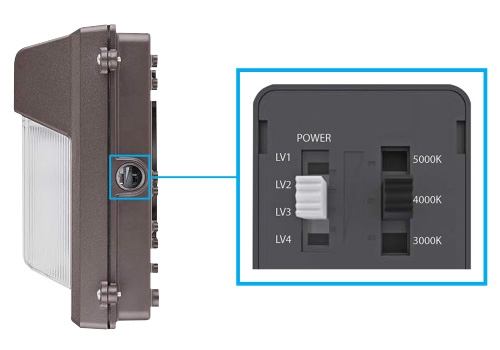

• LIGHT ENGINE — Energy efficient LED - Field Selectable Wattage / CCT. (50,000hr lifespan)
• OPERATING TEMPERATURE — -40°C to 40°C / -40°F to 104°F.
• MOUNTING — Wall mounts to J-BOX via separate mounting plate.

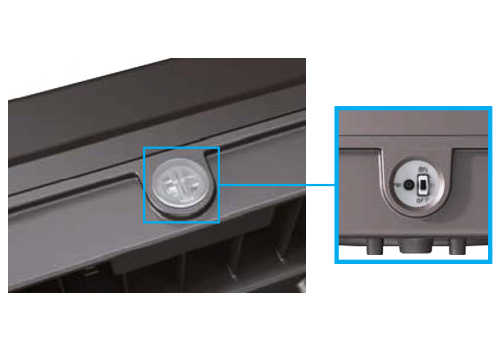

• PHOTOCELL — Optional 120~277V Photocell is available.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. UL/cUL Listed for Wet Locations.
• WARRANTY — 5-year Limited Waranty

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
