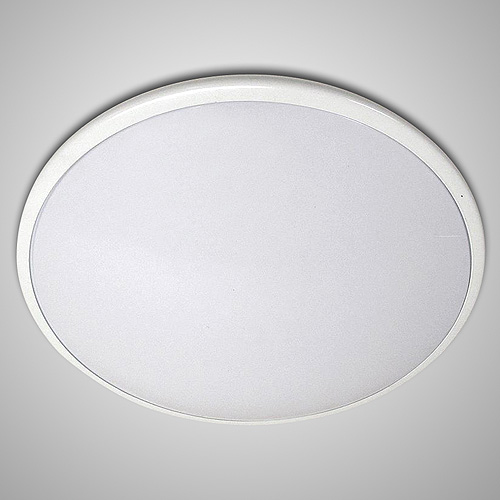

Lakeshore (LS)

SPECIFICATIONS
• DRIVER — Universal Voltage 120/277v Electronic Driver with 0-10V dimming in standard.
• DIFFUSER — Opal white acrylic. Secures to housing pan without visible hardware. Optional Perfex perforated cone top for uplighting (pendant model).
• EMERGENCY — Remote Emergency Battery.
• FINISH — Polyester powder coat white is Standard. Optional custom colors.
• LIGHT ENGINE — Energy Efficient Light Emitting Diode (LED).
• HARDWARE INCLUDED — (1) J Boxstrap, (1) Nipple, (1) Cap Nut.
• HOUSING — Heavy gauge CRS pan. Furnished with J-box mounting hardware for surface ceiling or wall mount.
• MOUNTING — Center Access Hole For Mounting to a Ceiling or Wall “J” Box.
• PENDANT — 12” Length, 1/2” conduit pendant stem with canopy swivel kit is standard. Aircraft Cable Suspension is also available.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. Suitable for damp locations. (Covered Ceiling Only).

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp
