Surface Mount

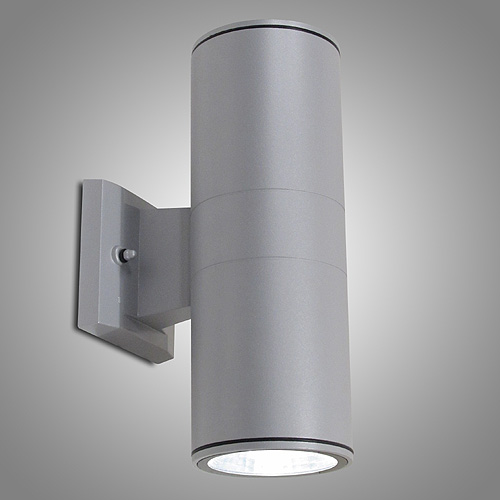

Troy 3 (TY3)

• COLOR RENDERING INDEX — 80.
• DRIVER — 120AC Voltage (50/60Hz).
• EFFICACY — 82lm/W (2,446 to 2,509 nominal lumens).
• FINISH — Durable Powder Coat Bronze (BZ) finish applied over pre-treated surfaces.
• HOUSING — Open heavy gauge aluminum cylinder.
• LIGHT ENGINE — Energy Efficient LED is standard. Built-in internal switch allows user to
choose between Up/Down Light or Down Light Only (Dark Sky Compliant).
• LENS — Clear Tempered Glass.
• LIFETIME — 50,000hrs with at least 70% of initial lumen output (L70).
• MOUNTING — Wall Mount featuring Arm.
• POWER FACTOR — ? 0.90
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. Complies with FCC Part 15, Class B. Complies with EN61000-4-5, surge immunity protection (1kV). RoHS / Energy Star compliant. Suitable for Wet Locations.
• WARRANTY — 5-Year Limited Warranty.

Cutsheets / IES

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the Troy 3.
