All Purpose

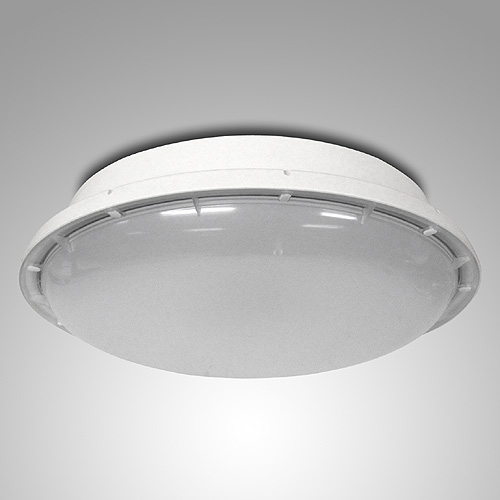

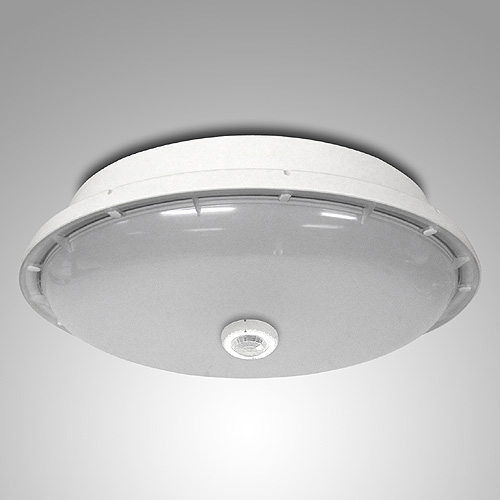

GR18

• DRIVER — Universal Voltage (120~277V), electronic driver with 0-10V dimming.
• DIFFUSER — Clear and frosted diffusers available in acrylic or polycarbonate. Acrylic lens are 100% impact modified, non-yellowing which is suitable for areas with UV exposure. Polycarbonate lens are UV stabilized and suitable for temperate conditions.
• GASKETING — Closed cell polyurethane gasket seals out moisture and prevents fungal growth.
• HOUSING — 5VA Fiberglass housing which prevents melting or deformation due to heat.
• LIGHT ENGINE — Energy Efficient LED.
• MOUNTING — Hook Mount, Pendant Mount, or Surface Mount.
• PIN SYSTEM — Latch-less, pin system secures the diffuser and housing together.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. UL 746/UL F1 Rated (Suitable for UV Light Exposure / Immersion of Water). IP65/IP66/IP67 Rated. NSF / RoHS compliant.
• WARRANTY — 5 Year Limited Warranty.

Cutsheets / IES

This is a QUICKSHIP item.
TelleLight
This fixture is TelleLight-Ready. TelleLight™ is the cutting edge convergence of LED fixtures, bluetooth & control software.
More Info

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the GR18.
