TelleLight

TelleLight™ is the cutting edge convergence of LED fixtures, Qualified bluetooth mesh, bluetooth sensors, bluetooth fixture controls and control software. Further enhancing your project with ease of installation & use. Adding new levels of flexibility, energy efficiency, management and quality.

Download TelleLight Brochure

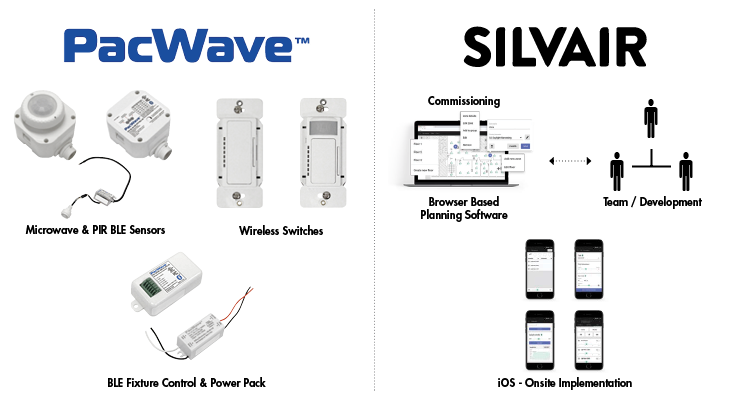

Lighting Control Solutions
Eclipse equips their high efficiency, high quality LED fixtures with state-of-the-art sensors and controls that enable them to securely communicate via Bluetooth mesh over 1000's of nodes.

For 30+ years, PacWave has produced superior lighting controls and related electrical power and protection components. Today, PacWave is an innovator in Bluetooth mesh control solutions with the largest range of qualified Bluetooth mesh devices in the marketplace. The PacWave platform offers numerous choices of sensors, wireless switches, dimming power packs and fixture controllers.

Silvair provides complete and flexible lighting control solutions based on Bluetooth mesh networking technology. Silvair monitoring tools provide real-time and historical data for tracking energy consumption.

Features & Benefits
Lighting Control Features
  • Complex Wiring is History!
  • *Qualified Bluetooth Mesh Products
  • Software: Browser Designed & Collaborative
  • Software: Onsite iOS Commissioned
  • Software: 7 Built-In Scenarios + Customization
  • Software: Configured Dimming & Timers
  • Software: Multiple Zone Configurable
  • Software: Ambient Light & Daylight Harvesting
  • Futureproof, with Software Updates
  • EnOcean Compatible Switches
  • **Remote Monitoring Capable

Fixture Options
  • Lumens and Wattage Options
  • CCT Options
  • Mounting Options
  • Emergency Options (Consult Factory)

* Meets Bluetooth Qualification Process
- July 2017 Declaration No.: D036228 / D036327
** Remote Monitoring is Available Via Additional Equipment and Services

  • Depending upon fixture type, wireless controls can be incorporated within the fixture. Consult Factory.
  • Project layout and design are executed via a web browser interface. Team collaboration is available.
  • Fixtures can be configured individually or in multiples within a Meshed Zone via a handheld Apple iOS Smart Device.
  • Designers and building professionals can rely on the most advance interoperability possible in the marketplace - both today and in the future. Every PacWave component is fully qualified in compliance with Bluetooth mesh networking specifications published by Bluetooth SIG.

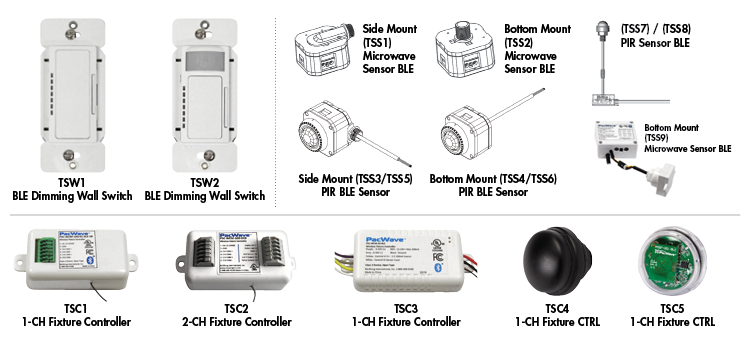

TelleLight Devices
Model Code Description Function Height Mount IP
TSS1 Microwave Sensor with BLE Occupancy + Dimming 8-40' Side IP65
TSS2 Microwave Sensor with BLE Occupancy + Dimming 8-40' Bottom IP65
TSS3 PIR BLE Sensor Occupancy + Dimming 8-12' Side IP65
TSS4 PIR BLE Sensor Occupancy + Dimming 8-12' Bottom IP65
TSS5 PIR BLE Sensor Occupancy + Dimming 8-40' Side IP65
TSS6 PIR BLE Sensor Occupancy + Dimming 8-40' Bottom IP65
TSS7 PIR BLE Sensor Occupancy + Dimming + Daylight Harvest 8' Bottom Consult Factory
TSS8 PIR BLE Sensor Occupancy + Dimming 8' Bottom Consult Factory
TSS9 Microwave Sensor with BLE Occupancy + Dimming 10' Bottom IP65

TSC1 2-CH Fixture Controller BLE Controller + Dimming 12-24 VDC Input, 0-10VDC X2 Output
TSC2 2-CH Fixture Controller BLE Controller + Dimming + CCT Tuning 18-48 VDC Input, 0-10VDC X2 Output
TSC3 1-CH Fixture Controller BLE Controller + Dimming 12-24 VDC Input, 0-10VDC X1 Output
*TSC4 1-CH Fixture Controller - External (IP65) BLE Controller + Dimming 12-24 VDC Input, 0-10VDC X1 Output
*TSC5 1-CH Fixture Controller BLE Controller + Dimming + Ambient Light 12-24 VDC Input, 0-10VDC X1 Output
*Requires use of a TE Connectivity Lumawise Receptacle - Model: 2213858-1
TSW1 BLE Dimming Wall Switch Manually Switching White, 120-277 VAC Input, BLE Output
TSW2 BLE Dimming Wall Switch Switch + PIR Occupancy + Ambient Light White, 120-277 VAC Input, BLE Output

TPP1 Power Pack 1-Required per ISS & ISC Device 120-277 VAC Input
