All Purpose

HBA4 (HBA4)

• DRIVER — Universal Voltage (120~277V) Electronic Driver. 0-10V Low Voltage Dimming is Standard.
• FINISH — UV Stabilized powder coat ?nish.
• HOUSING — Heavy-duty aluminum with built-in heatsink ?ns allowing heat to rise and dissipate.
• LENS — Polycarbonate.
• LIGHT ENGINE — Energy Ef?cient Light Emitting Diode. Ef?cacy 165-180 lm/w.
• BEAM ANGLE — 30° / 60° / 90°
• COLOR RENDERING INDEX — +75 CRI.
• POWER FACTOR — 0.95+.
• AMBIENT OPERATING TEMPERATURE — ?50°C (122°F) ~ 65°C (149°F).

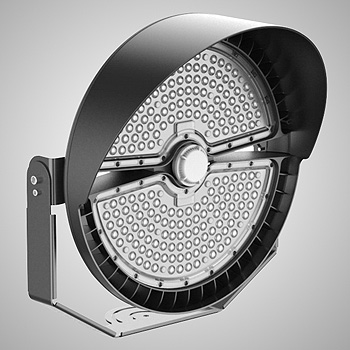

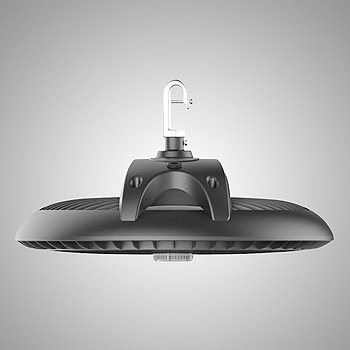

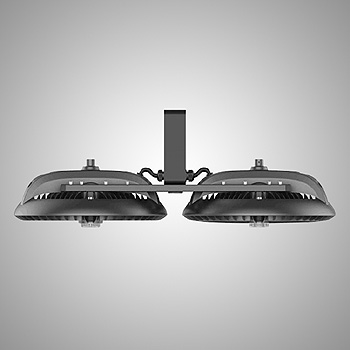

• MOUNTING — Hook Mount, Adjustable Bracket, and Pendant Mount.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. ETL, cETL, FCC, SAA, CE, RoHS Certi?ed. Tested IK10 Impact Testing according to IEC 62262.2002. IP65 Rated.
• WARRANTY — Standard 5 Years, defects and workmanship.

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the HBA4.
