General Purpose

LHB-G (LHB-G)

• APPLICATIONS — Commercial, Retail, Gymnasiums, Factories, Supermarkets, Warehouses.

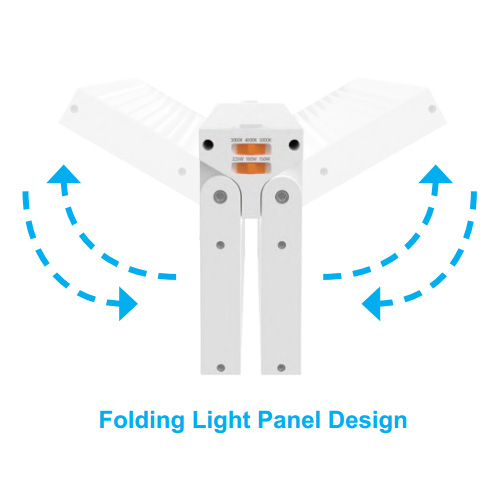

• ADJUSTABLE BEAM ANGLE — -30°, 0°, 30°, 45°.
• DRIVER — Universal Volt 120/277V electronic driver with 0-10V dimming.
• HOUSING — Aluminum housing.
• LENS — Polycarbonate.

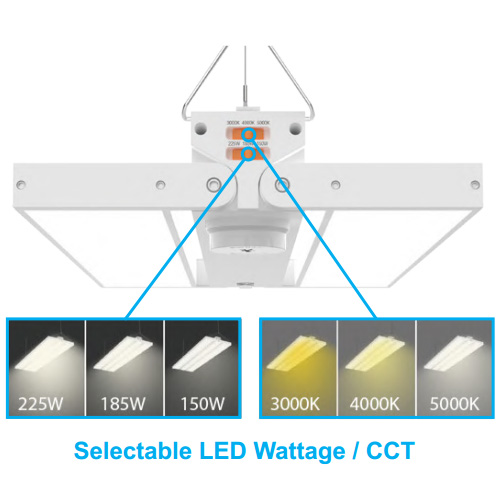

• LIGHT ENGINE — Energy efficient LED. Selectable Wattages / CCT via Built-In Dip Switches.
• PROJECTED LIFESPAN — 100,000hrs
• MOUNTING — Standard hanging bail for chain/cable mount.
• OPERATIONAL TEMPERATURE — -40°C (-40°F) to 50°C (122°F).
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards.
UL Certified, DLC Premium and RoHS Compliant. Suitable for damp locations. IP40 Rated.
• WARRANTY — 5-year Limited Warranty.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp
