Vandal

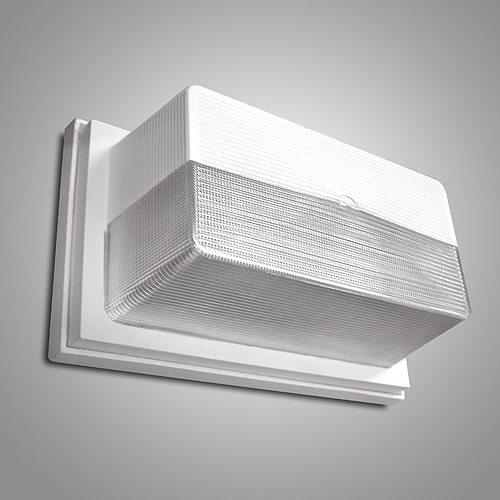

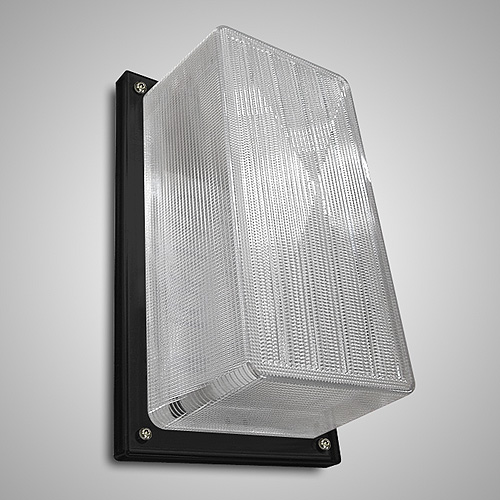

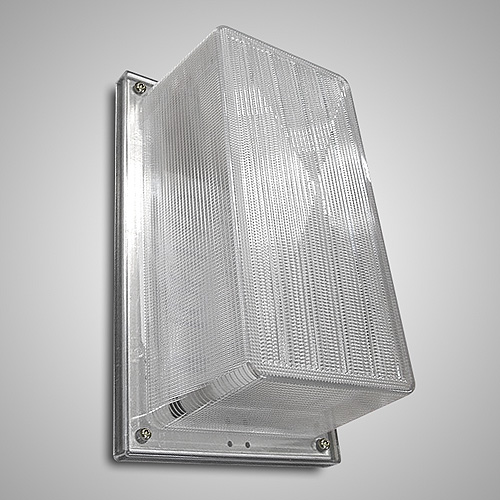

220 / 227 / 229 / 238 (220 / 227 / 229 / 238)

SPECIFICATIONS
MINIMUM ORDER QUANTITY — 227, 229, 238 require MOQ of 25pcs.
• BACKPLATE — 16G (.060) Aluminum Formed For Rigidity.
• DRIVER — Universal Voltage 120/277V Electronic Driver.
• FASTENERS — (4) Stainless Steel Tamperproof Screws Secure Lens to Backplate.
• GASKETING— Standard One Piece Die Cut 3/16” Thick Black EPDM and/or Neoprene Rubber.
• LIGHT ENGINE — Energy Efficient LED with Selectable Wattage/CCT.
• LENS — Injection Molded 1/8” Thick (Nom.) Clear Prismatic Polycarbonate completely encloses Fixture — Inside and Outside Collector and Refraction Prisms.
• MOUNTING HOLES — 4-Point Mount: (4) 5/16” Dia. Holes For 1/4” Dia. Bolts.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
