• DRIVER — Universal Volt (120-277v) electronic driver with 0-10V dimming is standard.
• BACKPLATE — 16 Ga. aluminum (AL).
• DIFFUSER — White translucent, fully enclosed non-yellowing 100% virgin acrylic, .125 Thick.

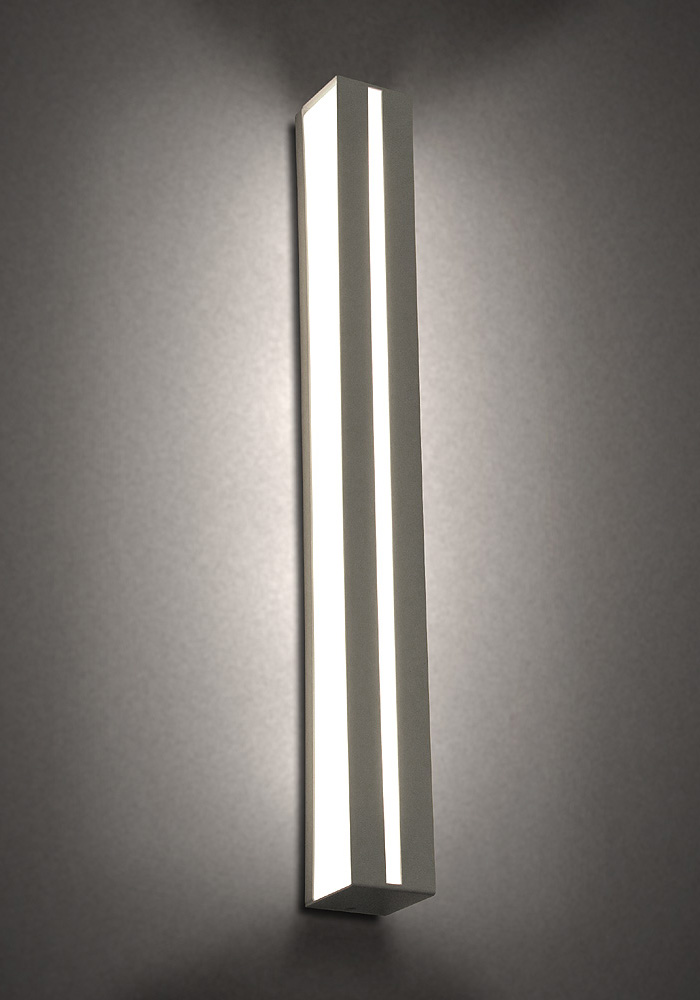

• SHIELD — Solid Aluminum Opaque Shield with Optional Center-Cut Aperture along length of
?xture - specify shield ?nish. Optional Color Window.
• FINISH — Corrosion and Weather resistant, extremely durable pre-treated oven baked
• GASKETING — High Temp., non-aging black EPDM and/or neoprene rubber around the
entire lens perimeter & rear wire entrance hole to protect against dust, moisture & outside contaminants.
• FASTENERS — Stainless steel tamperproof screws —(2) To secure lens in place.
• LIGHT ENGINE — Energy Ef?cient Light Emitting Diode.
• MOUNTING — Use (4) or (6) 5/16” diameter holes for 1/4” diameter bolts for outdoor or
indoor (no center access hole for J-Box mount). Must de-rate lamping for horizontal.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. Suitable for wet
