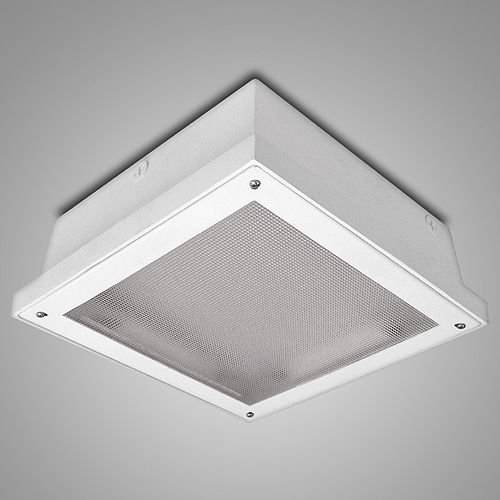

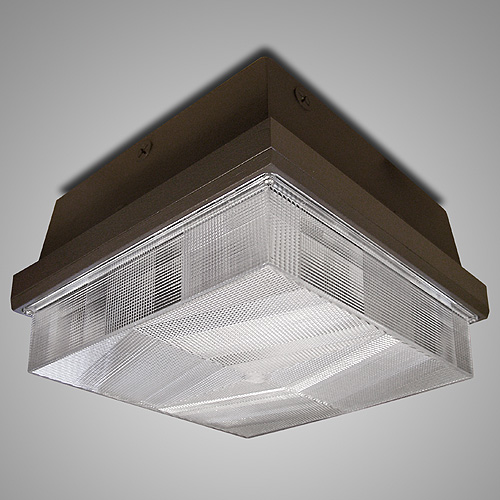

CM831/CM833 (CM831/CM833)

• DRIVER — Universal Voltage 120/277V Electronic Driver with 0-10V dimming is standard.
• EMERGENCY — Remote or Integral Emergency Battery (LED).
• GASKETING — High temp., non-aging black EPDM and/or neoprene rubber concealed in housing pocket & enclosed by cast-in drip shield & rear wire entrance hole to protect against outside contaminants.
• HOUSING — Heavy wall cast aluminum with wire access on four sides and back through
threaded 1/2” conduit size entrance holes. Bronze oven baked Polyester Powder Coat.
• LIGHT ENGINE — Energy Ef?cient Light Emitting Diode (LED).
• LENS — .156” thick K12 Prismatic Polycarbonate with internal collector prisms and external refractor prisms for high ef?ciency and low brightness.
• LENS FASTENERS — Stainless steel tamperproof screws (4) to secure lens in place.
• MOUNTING HOLES — 4-Point Mount: (4) 5/16” Diameter Holes For 1/4” Diameter Bolts.
For Backbox (BB) option, Carriage Bolts must be used.
• REFLECTOR — .032 textured aluminum for high ef?ciency and reduce arc tube voltage rise.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. Suitable for wet
locations. Made in USA / Buy America Compliant / Buy American Act.



This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the CM831/CM833.
