Outdoor

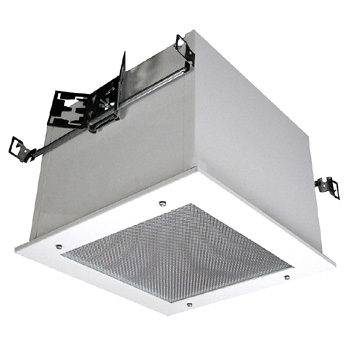

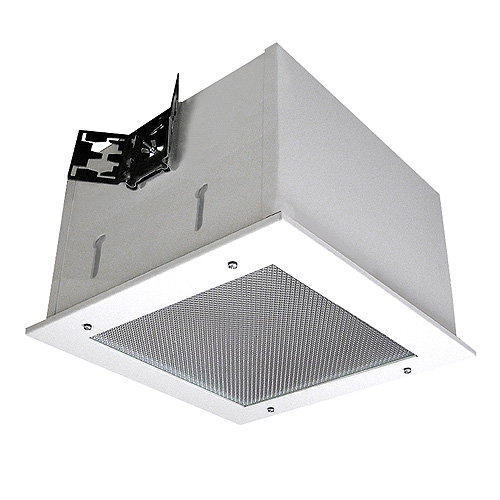

85 Shallow (85-S)

SPECIFICATIONS
• DRIVER — Universal voltage (120-277V) electronic driver with 0-10V dimming, standard.
• EMERGENCY — Remote emergency backup battery.
• FINISH — Housing, doorframe, and LED gear tray finished in phosphate pre-treated, oven baked white powder coat. Galvanized plaster frame furnished raw.
• GASKETING — Neoprene gasketing supplied between the doorframe and housing to protect against environmental contaminants and prevent light leak.
• HOUSING — 18-gauge CRS, die formed and spot-welded construction.
• LIGHT ENGINE — Energy efficient light emitting diode arrays with a minimum initial lumens per watt of 130LPW.
• LENS — 5/32” (.156”) thick K12 prismatic polycarbonate lens is standard.
• LED TRAY — 14-gauge die formed aluminum. Designed to thermally manage heat from LEDs.

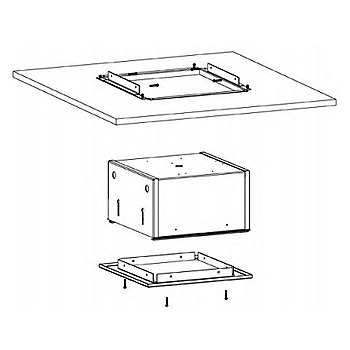

• MOUNTING — Lay-in ceiling style plaster frame. 16-gauge galvanized, die formed and spot welded construction.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. Complies with Buy American Act.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
(Covered Ceilings. Not For Insulated ceilings.)

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the 85 Shallow.
