Decorative

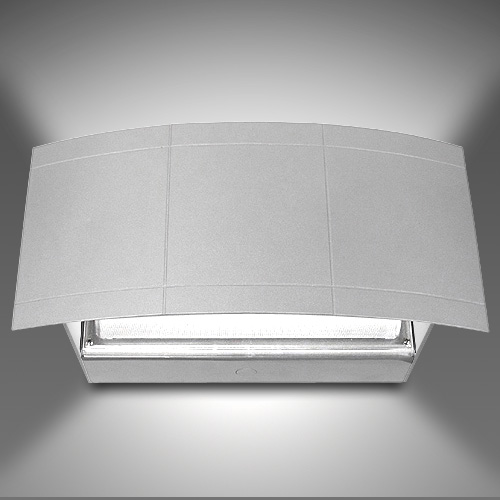

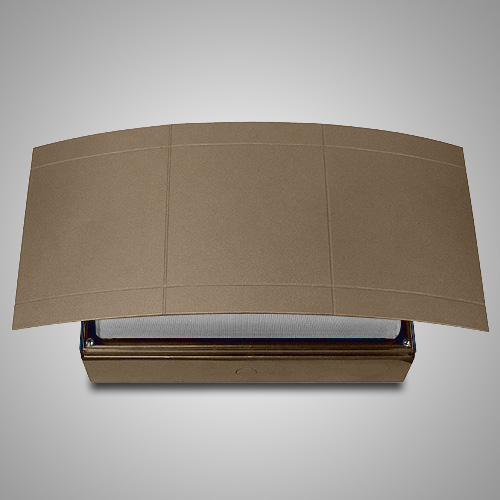

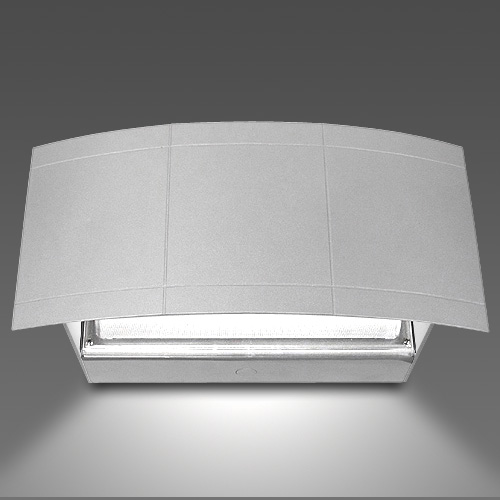

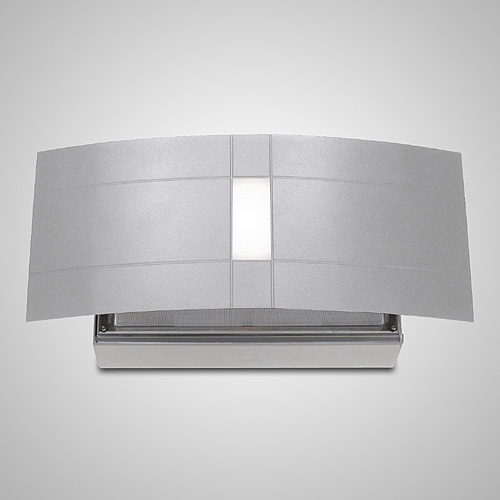

Glasgow (GW)

SPECIFICATIONS
• DRIVER — Universal Voltage 120/277v Electronic Driver with 0-10V dimming is standard.
• EMERGENCY — Integral or Remote LED emergency battery.
• GASKETING — High temperature, non-aging black EPDM and/or Neoprene Rubber concealed in housing pocket and enclosed by cast-in drip shield and rear wire entrance hole to protect against outside contaminants.
• HOUSING — Formed aluminum with wire access on four sides and back through threaded 1/2 “ conduit size entrance holes.
• FINISH — Oven baked Polyester Powder Coat.
• LIGHT ENGINE — Energy Efficient Light Emitting Diode (LED).
• LENS — UV stabilized 1/8” thick injection molded clear prismatic Hi-impact Polycarbonate.
• LENS FASTENERS — Stainless steel tamperproof screws (4) to secure lens in place.
• MOUNTING — Wall 4 point.
• REFLECTOR — .032 aluminum painted white with high reflectivity.
• SHIELD — 0.063” aluminum Rounded or Triangular Fascia.
• COMPLIANCE — Built to comply with U.S. and Canadian safety standards. Suitable for wet locations. ETL Listed / Made in USA / Buy America Compliant / Buy American Act.

Cutsheets / IES

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the Glasgow.
