New!
Full Cutoff

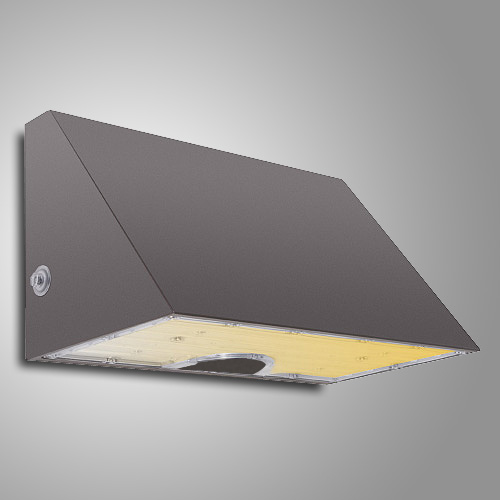

Liverpool 5 (LV5)

• DRIVER — Universal Voltage (120-277v) electronic driver with 0-10V dimming.
• HOUSING — Die-cast aluminum with built-in heatsink, fully sealed by silicone ring that prevents dust and other contaminants from entering.
• FINISH — Polyester powder coated finish.
• LENS — U.V. stabilized polycarbonate lens for uniform illumination.
• LIGHT ENGINE — Energy efficient LED featuring Selectable Wattage/CCT.
• LIFETIME — 50,000+ Hour LED Life Expectancy (L70).
• MOUNTING — Mounts to standard 4” J-BOX.
• OPERATIONAL TEMP — -40°F to +113°F.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards.
DLC 5.1 Compliant. UL listed for Wet Location, IP65 Rated.
• WARRANTY — 5-Year Limited Warranty

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the Liverpool 5.
