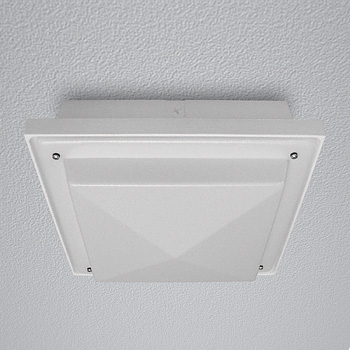

Quest 5 (QE5)

• DRIVER — Universal Voltage 120/277 Electronic Driver is standard for LED.
• EMERGENCY — LED — Remote Emergency LED Battery. Specify Secondary Voltage.
• GASKETING — High temperature, non-aging black EPDM and/or neoprene rubber around
entire lens perimeter and rear wire entrance hole to protect against dust, moisture, and outside contaminants.
• HOUSING — Heavy wall cast aluminum with wire access on four sides and back through
threaded 1/2” conduit size entrance holes—?nished in bronze oven baked polyester powder
• LIGHT ENGINE — Energy Ef?cient Light Emitting Diode (LED).
• LENS — Injection molded 1/8” thick (nom.) clear prismatic polycarbonate completely
enclosed ?xture—Drop Pyramid is Standard.
• LENS FASTENERS — Stainless steel tamperproof screws (4) to secure lens in place.
• MOUNTING — 4-Point Mount: (4) 5/16” Diameter Holes For 1/4” Diameter Bolts. Option-
al Quick Mount Bracket.
• REFLECTOR — .032 textured aluminum for high ef?ciency and to reduce arc tube voltage
rise for lamp life.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. Suitable for
Wet Locations. Made in USA / Buy America Compliant / Buy American Act.

Cutsheets / IES


This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet

Quest 5 Gallery:

This fixture is featured in the galleries below.

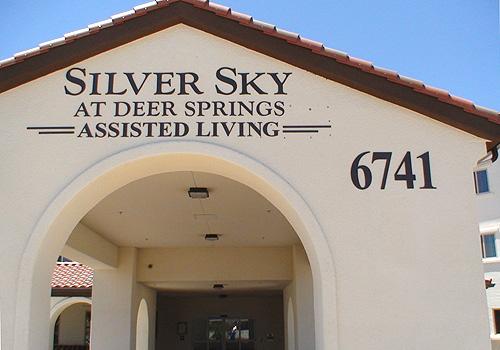

Silver Sky Community

Related Fixtures:

Like this fixture but want something slightly different? Check out the products below that share features of the Quest 5.
