Vandal

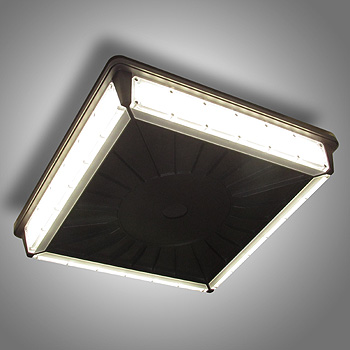

PG14 (PG14)

SPECIFICATIONS
• DIMENSIONS — 14” Square x 4.3” Depth.
• DRIVER — Universal Voltage (120~277V) with 0-10V Dimming supplied as Standard.
• HOUSING — Die cast aluminum housing with built-in cooling fins for LED Tj < 85°C.
• FINISH — Die Cast aluminum housing finished in Bronze or White.
• EFFICACY — 125 Lumens per Watt.
• LUMINOUS FLUX— 4983 Lm.
• LIFE SPAN — >50,000 Hrs Duty Cycle
• LED LUMEN DECAY — <5% / 6000hrs
• BEAM ANGLE — 274°.
• UPLIGHT — 15%.
• COLOR RENDERING INDEX — >80 CRI.
• POWER FACTOR — 0.95.
• POWER EFFICIENCY — 0.90%
• MOUNTING — Ceiling surface mount via Quick Mount Box (Standard).
Pendant Mount (PEND) and Trunnion Mount Bracket (TMB) option available.
• WEIGHT — 4.228Kg / 9.32lbs.
• OPERATING/STORAGE TEMP — -30°C to 45°C / -40°C to 80°C
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. Suitable for Wet Locations. c/UL and DLC Listed. IP65 Tested and Approved.
• WARRANTY — 5 Year Limited Warranty.

Cutsheets / IES

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
